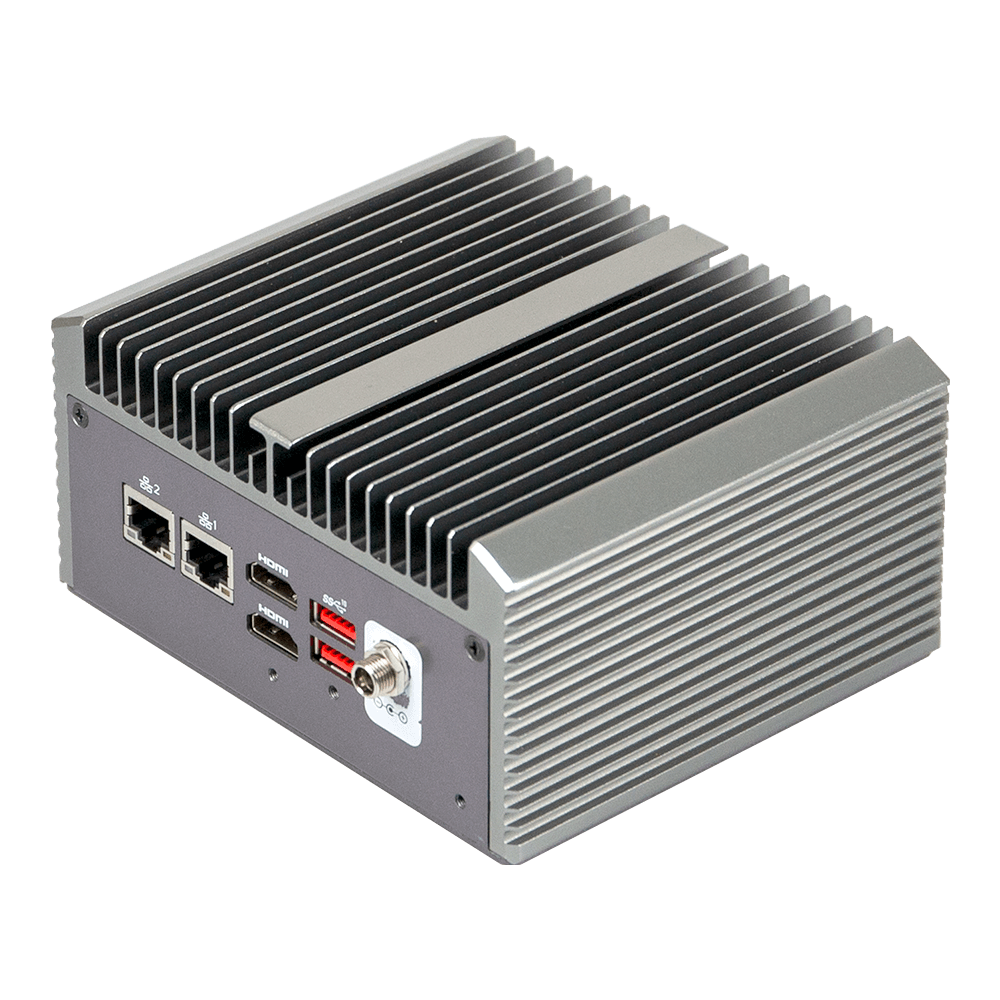

QBiX-WHLA8565H-A1
| 製品種別 | 産業用PC |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | BOX |
| 最大GPU数 | |
| 電源仕様 | ACアダプタ電源 |
| 用途/特長 | |
| 製品説明 | Industrial system with Intel® Core™ i7-8565U Processor Lockable DC Connector/ 2 x HDMI / 2 x LAN Ports |
製品仕様
| Operating Properties | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature:-40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
|---|---|
| CPU | Intel® Core™ i7-8565U Processor 14nm, 4 cores, 8 threads, up to 4.6 GHz TDP 15W |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM socket, Max. Capacity 32 GB Support Dual Channel DDR4 2400 MHz memory modules |
| LAN | 1 x GbE LAN Port (Intel® I219V) 1 x GbE LAN Port (Realtek® RTL8111HS) |
| Video | Integrated Graphics Processor - Intel® UHD Graphics 620: 2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160 @30Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Vertical USB 3.2 Gen 1 |
| Rear I/O | 2 x HDMI 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 1 x Screw type DC Jack |
| Packaging Content | Carton size: 416 x 409 x 296 (mm) Packing Capacity: 6pcs Single Box size: 258 x 191 x 130 (mm) Including: PSU ADP 19V 90W 100-240VAC x 1 (P/N: 25EP4-10090A-F3S) Power Cord : Optional (by region) Wall Mount Bracket (P/N: 25HB2-CGAA20-CHR) Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) Thermal Pad HDD x 2 (P/N: 25ST3-200052-T5R) Thermal Pad DRAM2 x 1 (P/N: 25ST3-200051-T5R) SATA power Cable x 1 (P/N: 25CRI-075630-S9R) SATA Cable x 1 (P/N: 25CF4-075500-S9R) |
| Ordering Information | 6BQB8565AMR-SI (Box packing) |
| Storage | 1 x 2.5" HDD/SSD (SATA 6 Gb/s) |
| Front I/O | 2 x USB 3.2 Gen 2x1 1 x Power button with LED 2 x External Antenna Holes (Optional) 1 x HDD LED 1 x COM Port (RS-232/422/845) 1 x Headphone Jack |
| Dimension | 138W x 118D x 74.2H(mm) |
