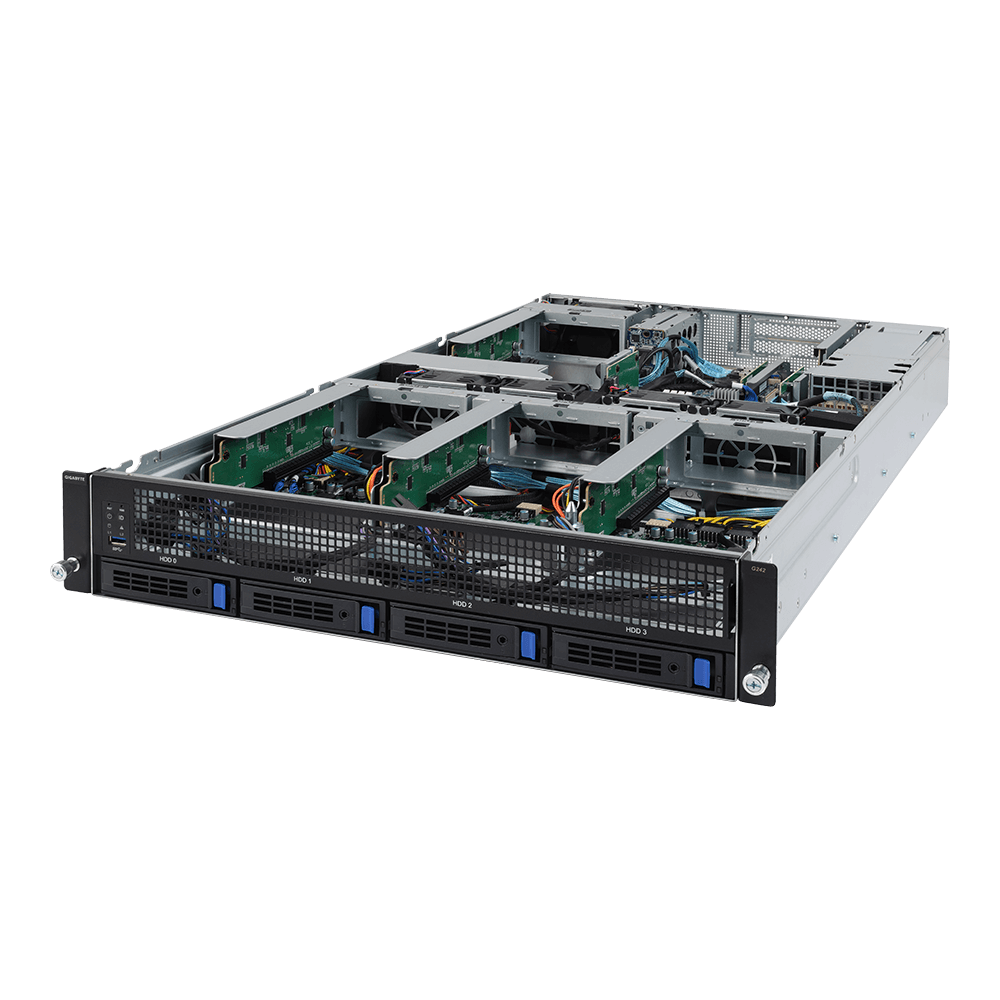

G242-Z10 (rev. 100)

製品種別 サーバ
CPUソケット数
CPU 　
筐体サイズ 2U
最大GPU数
電源仕様 リダンダント電源
用途/特長 　
製品説明

製品仕様

Dimensions (WxHxD, mm) 2U
438 x 87.5 x 820
Motherboard MZ12-HD1
CPU AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W

Compatible with AMD EPYC™ 7001 series processor family
Socket Socket SP3
Chipset System on Chip
Memory 8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz
LAN 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage Front side: 4 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
SAS card is required for SAS devices support

Rear side: 2 x 2.5" NVMe/SATA hot-swappable HDD/SSD bays
SATA Supported
SAS Depend on SAS Card
RAID -
Peripheral Drives -
Expansion Slots 4 x PCIe x16 slots (Gen3 x16 bus) for GPUs

Riser Card CRSG027:
- 1 x PCIe x16 slot (Gen3 x16 or x8), Low profile, half-length
- 1 x PCIe x8 slots (Gen3 x0 or x8), Low profile, half-length

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)

1 x onboard M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards

- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O 1 x TPM header
1 x Front panel header
Front I/O 1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O 2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED
Backplane I/O Front side_CBPG041: 4 x SATA/SAS ports
Rear side_CBP2021: 2 x NVMe/SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s, SAS 12Gb/s or PCIe x4 per port
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply 2 x 1600W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-127V~/ 12A, 47-63Hz
- 200-240V~/ 9.48A, 47-63Hz

DC Output:
- Max 1000W/ 100-127V
+12V/ 82A
+12Vsb/ 2.1A
- Max 1600W/ 200-240V
+12V/ 132A
+12Vsb/ 2.1A
System Management Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
Weight Net Weight: TBD kg
Gross Weight: TBD kg
System Fans 5 x 80x80x38mm (16,300rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Content 1 x G242-Z10
1 x CPU heatsink
1 x Rail kit
Part Numbers Barebone with rail kit: 6NG242Z10MR-00
- Motherboard: 9MZ12HD1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Back plane board_4-port: 9CBPG041NR-00
- Back plane board_2-port: 9CBP2021NR-00
- Front panel board: 9CFP1000NR-00
- Power supply: 25EP0-216007-L0S
