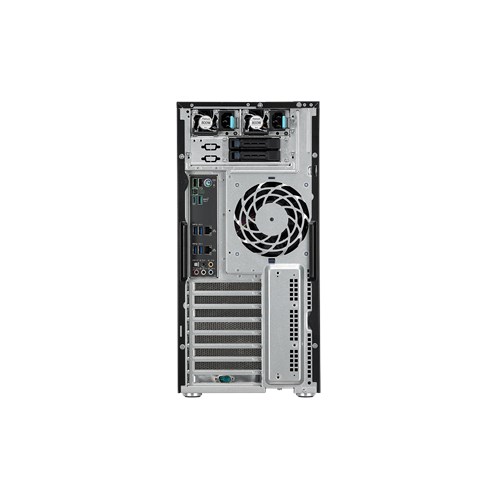

TS700-E9-RS8
製品種別 | サーバ |
---|---|
CPUソケット数 | |
CPU | |
筐体サイズ | タワー |
最大GPU数 | |
電源仕様 | リダンダント電源 |
用途/特長 | |
製品説明 |
製品仕様
Processor / System Bus | 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family (205W) *Refer to support page for more information UPI (10.4 GT/s) |
---|---|
Core Logic | Intel® Lewisburg PCH C621 |
Memory | Total Slots : 12 (6-channel per CPU, 6 DIMM per CPU) Capacity : Maximum up to 768GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS Memory Type : DDR4 2933/2666 RDIMM DDR4 2933/2666 LRDIMM DDR4 2933/2666 LR-DIMM 3DS Memory Size : 64GB, 32GB, 16GB, 8GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
Expansion Slots | Total PCI-E Slots: 7 Slots 2 x PCIe 3.0 x16 slots (Gen3 x16 link), FH, FL (CPU2) 2 x PCIe 3.0 x16 slots (single Gen3 x16 link, dual Gen3 x8/x8 link), FH, FL (CPU1) 2 x PCIe 3.0 x16 slots (Gen3 x8 link), FH, FL (CPU2) 1 x PCIe 3.0 x16 slot (Gen3 x16 link), FH, HL (CPU1) |
Storage | SATA Controller : Intel® C621 8 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SATA Controller : ASMedia® SATA 6Gb/s controller 2 x SATA3 6Gb/s ports SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support |
Drive Bays | 8 x 3.5” Hot-swap Storage Bays 1 x M.2 Socket 3, supporting type 22110/2280/2260/2242 (PCIe Gen3 x4 and SATA mode) |
Auxiliary Storage FDD/CD/DVD | 3 x 5.25" media bays (Options: No Device / DVD-RW / DVD-ROM) |
Networking | 2 x Intel® I210AT |
Graphic | Aspeed AST2500 with 64MB VRAM |
Front I/O Ports | 1 x Headphone jack 1 x Microphone jack 2 x USB 2.0 ports 2 x USB 3.1 Gen 1 ports |
Rear I/O Ports | 2 x USB 3.1 Gen2 ports (1 x Type-A and 1 x Type-C™) 4 x USB 3.1 Gen1 ports 2 x USB 2.0 ports (1 supports USB BIOS Flashback) 1 x USB BIOS Flashback button 1 x PS/2 and keyboard Mouse port 2 x RJ-45 LAN ports 1 x Optical S/PDIF Out port 5 x Audio Jacks |
Switch/LED | Front Switch/LED: 1 x Power switch 1 x Location LED 1 x Reset switch 1 x HDD Access LED 1 x Message LED 1 x Power LED LAN 1-2 LED |
OS Support | Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html |
Management Solution | ASUS Control Center (Classic) ASMB9-iKVM for KVM-over-IP (optional) |
Regulatory Compliance | BSMI, CE, RCM, FCC(Class A) |
Dimensions | 455mm x 217.5mm x 545mm 17.91" x 8.54" x 21.45" |
Form Factor | 5U/Tower |
Weight | Net Weight: 18.33 Kg Gross Weight: 23.12 Kg |
Power Supply | 800W 80PLUS Platinum Redundant Power Supply Module Rating: 100-127/200-240Vac,9A / 4.5A, 50 / 60Hz, Class I |
Environment | Operating temperature: 10°C – 35°C Non operation temperature: -40°C – 70°C Non operation humidity: 20% – 90% (Non condensing) |
Note | * Dual Intel® Socket P/LGA 3647 (Square) ** VROC (Virtual Raid on CPU) support, refer in the manual for detail. |
パーツ仕様
MB | WS C621E SAGE |
---|
