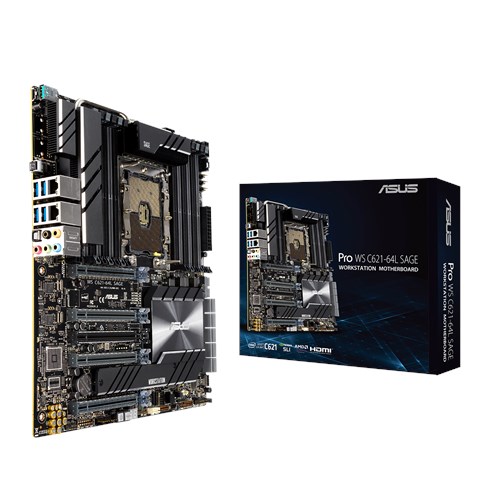

Pro WS C621-64L SAGE
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA3647 (Socket P) |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family Intel® Xeon® W-3200 Processors |
|---|---|
| Core Logic | Intel® C621 Chipset |
| Memory | Total Slots : 12 (6-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 1536GB RDIMM Memory Type : DDR4 2933/2666 RDIMM DDR4 2933/2666 LRDIMM Memory Size : 128GB, 64GB, 32GB, 16GB RDIMM/LRDIMM |
| Expansion Slots | Total Slot : 5 Slot Location 1 : PCI-E x16 (Gen3 X16 Link) Slot Location 2 : PCI-E x16 (Gen3 X16 Link) Slot Location 3 : PCI-E x16 (Gen3 X4 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link) Slot Location 5 : PCI-E x16 (Gen3 X16 Link) |
| Form Factor | CEB (12"x10.9", 305mm x 277mm) |
| Storage | SATA Controller : Intel® C621 8 x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link) SATA Controller : ASMedia® SATA 6Gb/s controller 2 x SATA3 6Gb/s ports |
| Networking | 2 x Intel® I210AT |
| On Board I/O | 1 x USB 3.0 pin header 1 x USB 2.0 pin header 10 x Fan Header , 4pin 1 x TPM header 1 x Serial Port Header 1 x VROC Key Header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x Chassis Intruder |
| Back I/O Ports | 2 x USB 3.2 Gen2 ports (1 x Type-A, 1 x Type-C) 4 x USB 3.2 Gen1 ports 2 x Gigabit LAN ports (RJ45) 5 x Audio Jacks (7.1-channel HD Audio) 1 x Optical S/PDIF output |
| Management Solution | WOL by PME,PXE ASUS Controler Center |
| Note | * Suggest to use Intel Xeon W-3200 processors which support PCIe slots with full CPU links(64 lanes). Intel Xeon Scalable processors are supported, but there may be some limitations of CPU links(48 lanes). |
