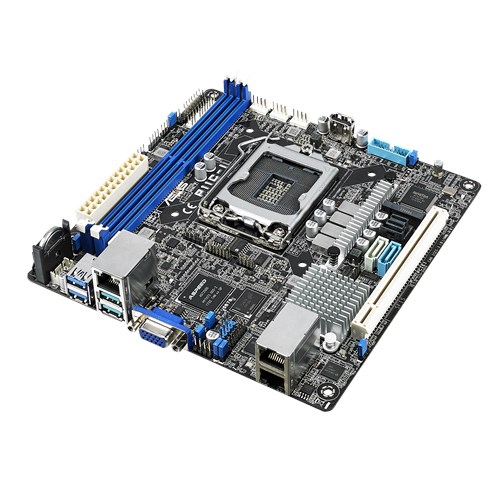

P11C-I
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1151 (Socket H4) |
| マザーボードサイズ | Mini-ITX |
| 製品説明 |
製品仕様
| Processor / System Bus | 1 x Socket LGA1151 Intel® Xeon® processor E-2100 family Intel® Core™ i3 processors Intel® Pentium™ processors Intel® Celeron™ processors |
|---|---|
| Core Logic | Intel® C242 Chipset |
| Memory | Total Slots : 2 (2 Channels) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR4 2666/2400 UDIMM non ECC and with ECC Memory Size : 16GB, 8GB, 4GB * Refer to support page for more information |
| Expansion Slots | Total Slot : 1 Slot Location 7 : PCI-E x16 (Gen3 X16 Link) Follow SSI Location# |
| Form Factor | Mini ITX (6.7" x 6.7", 170mm x 170mm) |
| ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) ASUS Control Center |
| Storage | SATA Controller : Intel® C242 Chipset 6 x SATA3 6Gb/s ports *1 1 x M.2 connector (2242) *2 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2500 with 32MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector)*3 1 x USB connector*4 3 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x M.2 Connector NGFF Type : 2242 1 x Onboard header for optional management card |
| Back I/O Ports | 2 x USB 3.1 Gen 2 2 x USB 3.1 Gen 1 1 x VGA Port 2 x GbE LAN + 1 x Mgmt LAN |
| Management Solution | ASUS Control Center Optional ASMB9-iKVM for KVM-over-Internet |
| Weight | Gift Box(1-in-1) Net Weight : 1.2 lb (0.52 KG) Gross Weight : 2.4 lb (1.1 KG) Bulk Pack(10-in-1) Net Weight : 8.1 lb (3.66 KG) Gross Weight : 12.8 lb (5.8 KG) |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories | Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 2 x SATA 6G cables 1 x Plate for LGA1151 1 x COM port cable Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1151 10 x COM port cable |
| Monitoring | CPU Temperature Fan RPM |
| Note | *1 4 by 1 mini-SAS HD *2 1 x M.2 connector (NGFF 2242, PCI-E Gen3X2 link or SATA signal, gray SATA port will disable when M.2 is SATA signal) *3 24-pin ATX power connector + 4-pin ATX 12V power connector *4 1 x USB 2.0 connector (Type A USB socket) |
