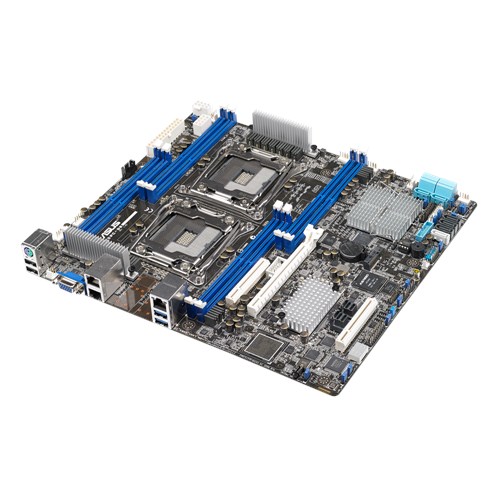

Z10PC-D8/SAS
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA2011 |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket R3 (LGA 2011-3; Square type 80x80mm;The maximum length of the heatsink screw thread is 3.7mm.) Intel® Xeon® processor E5-2600 v4 product family Intel® Xeon® processor E5-2600 v3 product family QPI 6.4 / 8.0 / 9.6 GT/s |
|---|---|
| Core Logic | Intel® C612 PCH |
| Memory | Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU) Capacity : Maximum up to 512GB LRDIMM Memory Type : DDR4 2400 /1866*/2133 /1600/1333 RDIMM* DDR4 2400 /1866*/2133 /1600/1333 LRDIMM* Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
| Expansion Slots | Total Slot : 3 Slot Location 1 : PCI-E x8 (Gen2 X4 Link), MIO supported Slot Location 5 : PCI-E x16 (Gen3 X16 Link) Slot Location 6 : PCI-E x8 (Gen3 X8 Link) |
| Form Factor | CEB (12”x 10.5”, 305mm x 267mm, ATX Mounting Hole Locations) |
| ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise |
| Storage | SATA Controller : Intel® C612 10 x SATA3 6Gb/s ports or 9 x SATA3 6Gb/s ports + 1 x M.2 connector *1 Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : Onboard LSI 3008 8-port SAS 12G Controller *2 |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)*3 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)*4 1 x Management Connector , Onboard socket for optional management card 1 x USB 2.0 pin header , Up to 2 Devices 1 x USB 3.0 pin header , Up to 2 Devices 8 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB |
| Back I/O Ports | 2 x USB 3.1 Gen 1 2 x USB 2.0 1 x VGA Port 2 x GbE LAN 1 x Mgmt LAN 1 x PS/2 KB/Mouse |
| Management Solution | ASWM Enterprise Optional ASMB8-iKVM for KVM-over-Internet |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Weight | Gift Box (1-in-1) Net Weight : 1.383 KG Gross Weight : 2.4 KG Bulk Pack (10-in-1) Net Weight : 12.6 KG Gross Weight : 15.2 KG |
| Accessories | Gift Box (1-in-1) with ASMB8-IKVM 1 x ASMB8-iKVM Module 3 x Support DVD 1 x IO Shield 1 x Cable Set Gift Box (1-in-1) 2 x Support DVD 1 x IO Shield 1 x Cable Set Bulk Pack (10-in-1) with ASMB8-IKVM 1 x ASMB8-iKVM Module 3 x Support DVD 1 x IO Shield Bulk Pack (10-in-1) 2 x Support DVD 1 x IO Shield |
| Monitoring | CPU Temperature Fan RPM |
| Note | * Please refer to www.asus.com for latest momory AVL update *1: SATA 6Gb/s & PCI-E Gen2 x1 link *2: 2 Mini-SAS HD SFF-8643 *3: 85W or below CPU only. Minimum Requirement of ATX Power Supply: 1) 500W 2) All +12V output ≧20A *4: Support Both ATX & SSI Power Supply |
