生産終了

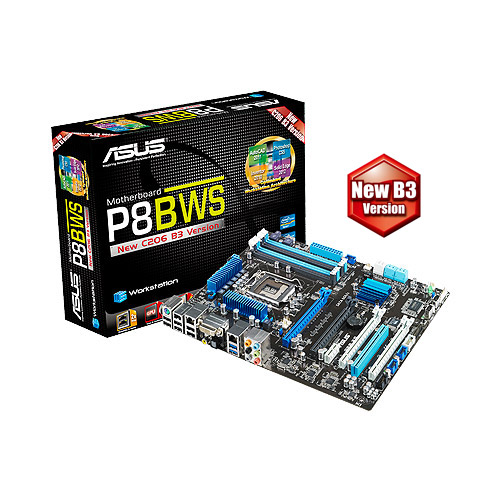

P8B WS
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1155 |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| CPU | Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Intel® Socket 1155 for Intel® E3-1200/12x5 v2 processors Intel® Socket 1155 for Intel® E3-1200/12x5 processors Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2 * Refer to www.asus.com for CPU support list |
|---|---|
| Chipset | Intel® C206 |
| Memory | 4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory *1 Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Non-ECC, Un-buffered memory only support for client OS (Windows7,Vista and XP). |
| Graphic | Integrated Graphics Processor *2 VGA output support : DVI port - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Maximum shared memory of 1748 MB |
| Multi-GPU Support | Supports AMD Quad-GPU CrossFireX™ Technology |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, black+blue) *3 2 x PCIe 2.0 x16 (x4 mode, white) 1 x PCIe x1 1 x PCI |
| Storage | Intel® C206 chipset : 2 x SATA 6Gb/s port(s), gray Intel® C206 chipset : 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 |
| LAN | Intel® 82574L, 2 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel |
| IEEE 1394 | VIA® 6308S controller 2 x IEEE 1394a port(s) |
| USB Ports | Built-in Controller : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel® C206 chipset : 14 x USB 2.0 port(s) (6 at back panel, gray, 8 at mid-board) |
| Workstation Feature | G.P. Diagnosis Card bundled Quick Gate: 2 x vertical USB 2.0 on board ASUS SASsaby series Cards support ASUS WS Diag. LED |
| Special Features | ASUS EPU : - EPU switch ASUS Power Design : - 8 +2 Phase Power Design GPU Boost with switch ASUS Exclusive Features : - MemOK! - AI Suite II - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-I 1 x IEEE 1394a 2 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 6 x USB 2.0 1 x Coaxial S/PDIF out 1 x Optical S/PDIF out 6 x Audio jack(s) |
| Internal I/O Ports | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x Vertical USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 1 x IEEE 1394a connector(s) 1 x CPU Fan connector(s) 1 x Power Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) |
| BIOS | 32MB flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3 |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Operating System | Fedora 13 Windows® Server 2008 R2 Enterprise Windows® Server 2008 Enterprise 32/64-bit Windows® Server 2003 R2 Enterprise 32/64-bit Windows® 7 32/64-bit Windows® Vista 32/64-bit Windows® XP 32/64-bit RedHat® Enterprise Linux WS 6.0 32/64-bit Open SUSE 11.4 Ubuntu Desktop 10.04 *4 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.5 cm ) |
| Note | *1: Only using Intel 3th Core series processors and xeon E3-1200/12X5 V2 processors,DDR3 DIMM can run up to 1600MHz. *2: Only using processors which feature Intel HD Graphics,Intel integrated graphics could enable *3: Only using Intel 3th Core series processors and xeon E3-1200/12X5 V2 processors,PCIE x16_1 and PCIE x16_2 can run Gen3 performance. *4-1: According to Intel POR, Intel HD graphic driver may not be supported when installing Server Windows OS. The driver may cause unknown artifacting on your screen when continuously adjusting the monitor's resolution. Intel suggest using the Microsoft server windows built-in driver for customers. *4-2: Linux OS only conduct installation test OK. |
