生産終了

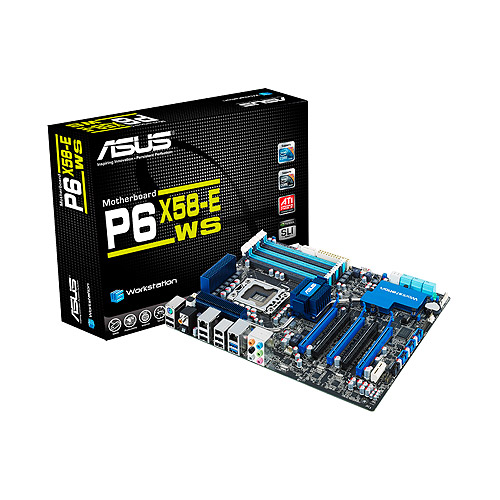

P6X58-E WS
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1366 |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| CPU | Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor/ Intel® Xeon® W5500/3600/3500 Series Intel® Xeon® X5600/ 5500 Series Intel® Xeon® E5600/5500 Series Intel® Xeon® L5600/5500 Series Supports Intel® Dynamic Speed Technology * Refer to www.asus.com for Intel CPU support list |
|---|---|
| Chipset | Intel® X58 / ICH10R Nvidia® NF200 |
| System Bus | Up to 6400 MT/s ; Intel® QuickPath Interconnect |
| Memory | 6 x DIMM, Max. 24 GB, DDR3 1866(O.C.)/2000(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory Triple channel memory architecture Please refer to www.asus.com or user manual for Memory QVL. Support Intel Extreme Memory Profile (XMP) * Due to Intel spec definition, DIMMs of DDR3-1800 or above are supported by specific CPU models only. * Please load X.M.P or D.O.C.P setting in BIOS for hyper DIMM (DDR3 1800MHz or above) support. |
| Expansion Slots | (@ x16) x PCIe 2.0 x16 1 2 x PCIe 2.0 x16 (@ x16 or x8) 2 x PCIe 2.0 x16 (@ x8) 1 x PCIe x1 |
| Multi-GPU Support | Supports NVIDIA® 3-Way Geforce SLI™ techonology
Supports ATI® CrossFireX™ technology, up to Quad CrossFireX™ |
| Storage | Intel ICH10R controller 6 xSATA 3.0 Gb/s ports Intel® Matrix Storage Support RAID 0,1,5,10 Marvell® 9128 PCIe SATA6Gb/s controller 2 xSATA 6.0 Gb/s ports, supporting RAID 0 and 1 |
| LAN | 2 x Intel® 82574L GbE LAN, support teaming function |
| Audio | Realtek ALC889 8-Channel High Definition Audio CODEC Multi-Streaming Jack-Sensing Front Panel Jack-Retasking Coaxial / Optical S/PDIF out ports at back I/O ASUS Noise-Filer |
| IEEE 1394 | VIA VT6315N supports 2 x 1394a ports |
| USB | USB 3.0 controller - x USB 3.0/2.0 ports (Blue, at back panel) 2 Intel® X58 Chipset - x USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel) 12 |
| ASUS Unique Features | EPU - 6 Engine True 16+2 Phase Power Design Turbo V Fan Xpert Q-Shield Q-Connector Fanless Design: Heat-pipe solution My Logo 2 CrashFree BIOS 3 EZ Flash 2 C.P.R.(CPU Parameter Recall) SFS (Stepless Frequency Selection) O.C. Profile |
| ASUS Workstation Special Features | 5 PCIe x 16 slots
G.P. Diagnosis Card bundled ASUS SASsaby Cards support (PCIEx16_5 slot only) ASUS WS Diag. LED |
| Back Panel I/O Ports | 2 x USB 3.0/2.0 1 x PS/2 Keyboard/Mouse Combo port 1 x S/PDIF Out (Coaxial + Optical) 1 x IEEE 1394a 2 x LAN(RJ45) port 6 x USB 2.0/1.1 8 -Channel Audio I/O |
| Internal I/O Connectors | 8-pin ATX +12V Power connector 3 x USB 2.0/1.1 connector(s) support additional 6 USB ports 1 x System Panel (20-pin) 1 x TPM connector 1 x Power Fan connector 1 x S/PDIF Out connector 24-pin ATX Power connector Chassis Intrusion connector CPU fan with PWM control Chassis fan1 with Q-fan control Chassis fan2 with Q-fan control Chassis fan3 with Q-fan control AAFP Front panel connector |
| BIOS | 16 Mb Flash ROM AMI BIOS, Green, PnP, DMI v2.0, Wfm2.0, ACPI v2.0a, SMBIOS v 2.5 |
| Manageability | WOL/WOR by PME, WOR by Ring, Chassis Intrusion |
| Support Disc | ASUS PC Probe II Anti-virus software (OEM version) ASUS Update BIOS flash utility under DOS AI Suite II Adobe Acrobat Reader ver 8.0 Microsoft DirectX ver 9.0C Image-Editing Suite |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.5 cm ) |
