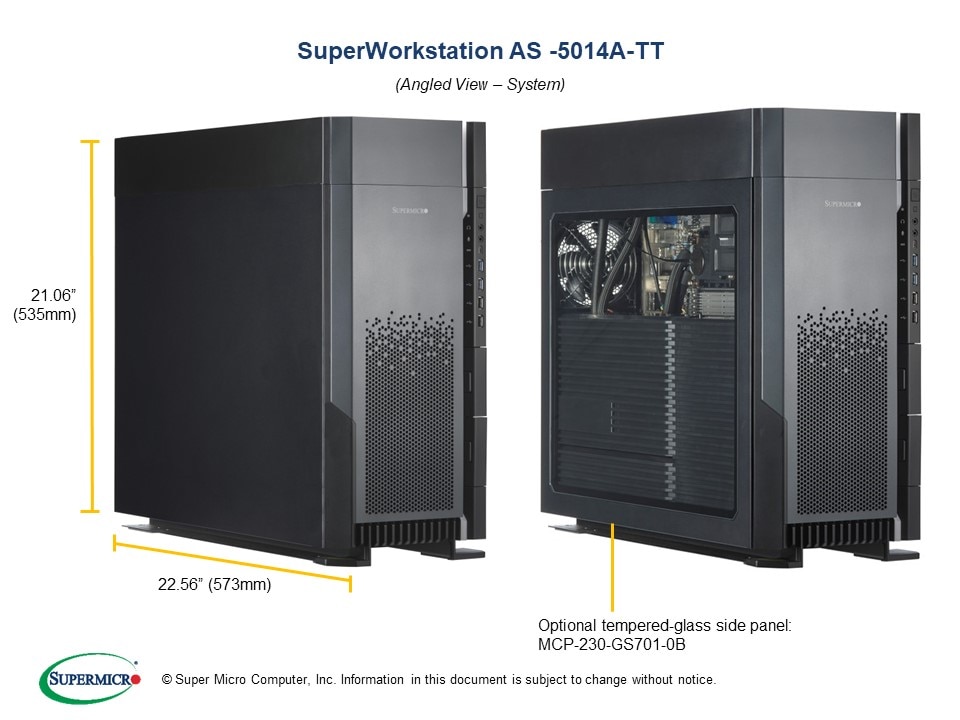

AS-5014A-TT
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | 1 |
| CPU | |
| 筐体サイズ | タワー |
| 最大GPU数 | 4 |
| 電源仕様 | シングル電源 |
| 用途/特長 | |
| 製品説明 | (Complete System Only) - Media and Entertainment Content Creation - Product Design and Engineering Simulation - AI and Deep Learning |
Supermicroについて
製品仕様
| Product SKUs | SuperWorkstation | AS -5014A-TT (Black) |
|---|---|
| マザーボード | Motherboard | Super M12SWA-TF |
| プロセッサ/キャッシュ | CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| Cores | Up to 64 Cores |
| メモリ | Memory Capacity | 8 DIMM slots Supports up to 2TB Registered ECC DDR4 3200-MHz SDRAM 8-channel memory bus |
| オンボードデバイス | Chipset | AMD WRX80 |
| SATA | 4 SATA3 (6Gbps) ports |
| Network Controllers | 10G LAN: Single LAN via Marvel AQC110C 10G Ethernet Controller 1GbE LAN: Single LAN with Intel® i210AT Enternet Controller (shared with IPMI) |
| Audio | 7.1 HD Audio with optical S/PDIF |
| 標準インターフェース | LAN | 1 RJ45 10GBase-T Ethernet LAN port 1 RJ45 GbE Ethernet LAN port (shared with IPMI) |
| USB | 1 USB 3.2 Gen2x2 port (Type C, 20Gbps) 5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps) 5 USB 3.2 Gen1 ports (3 Type A, 1 via header) 2 USB 2.0 via header |
| Video | 1 VGA port (dedicated for IPMI) |
| Serial Port / Header | 1 COM port (rear) |
| TPM | 1 TPM 2.0 Header |
| BIOS | BIOS Type | 256Mb SPI Flash with AMI BIOS |
| マネージメント | Software | Intel® Node Manager IPMI 2.0 SSM, SPM, SUM SuperDoctor® 5 Watchdog |
| システム監視機能 | FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| シャーシ | Form Factor | 5U Rackmountable / Tower Optional Rackmount Kit |
| Model | CSE-G7A-2000B |
| 外形寸法・重量 | Height | 21.06" (535mm) |
| Width | 8.74" (222mm) |
| Depth | 22.56" (573mm) |
| フロントパネル | Buttons | Power On/Off button LED On/Off button |
| LEDs | Power LED |
| Ports | 1 headphone jack 1 audio jack 1 USB 3.2 Port (Type C) 2 USB 3.2 Ports (Type A) 2 USB 2.0 Ports |
| 拡張スロット | PCI-Express | 6 PCI-E 4.0 x16 slots |
| M.2 | M.2 Interface: 4 PCI-E 4.0 x4 Form Factor: 2280, 22110 Key: M-Key |
| ドライブベイ | Fixed | 4 internal fixed 3.5"/2.5" SATA3 drive bays 2 front fixed 2.5" SATA3 drive bays |
| Peripheral Bay(s) | 2x 5.25" drive bays |
| 冷却機構 | Water Cooling | Optional high-performance closed-loop water cooling for CPU |
| Fans | 1x 12cm rear exhaust fan 3x 12cm front cooling fans (optional) 3x 12cm top cooling fans (optional) |
| 電源 | Total Output Power and Input | 1200W with Input 100 - 115Vac 1500W with Input 115 - 200Vac 2000W with Input 200 - 264Vac |
| AC Input Frequency | 50-60Hz |
| Dimensions(W x H x L) | 150 x 86 x 200 mm |
| +5V | Max: 25A / Min: 0.1A |
| +12V | Max: 100A / Min: 0.1A (100-115Vac) Max: 125A / Min: 0.1A (115-120Vac) Max: 166.6A / Min: 0.1A (200-264Vac) |
| +3.3V | Max: 25A / Min: 0A |
| 5VSB | Max: 4A / Min: 0A |
| -12V | Max: 0.5A / Min: 0A |
| Output Type | 24pin ATX |
| Certification | Platinum Certified |
| 動作環境 | RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
