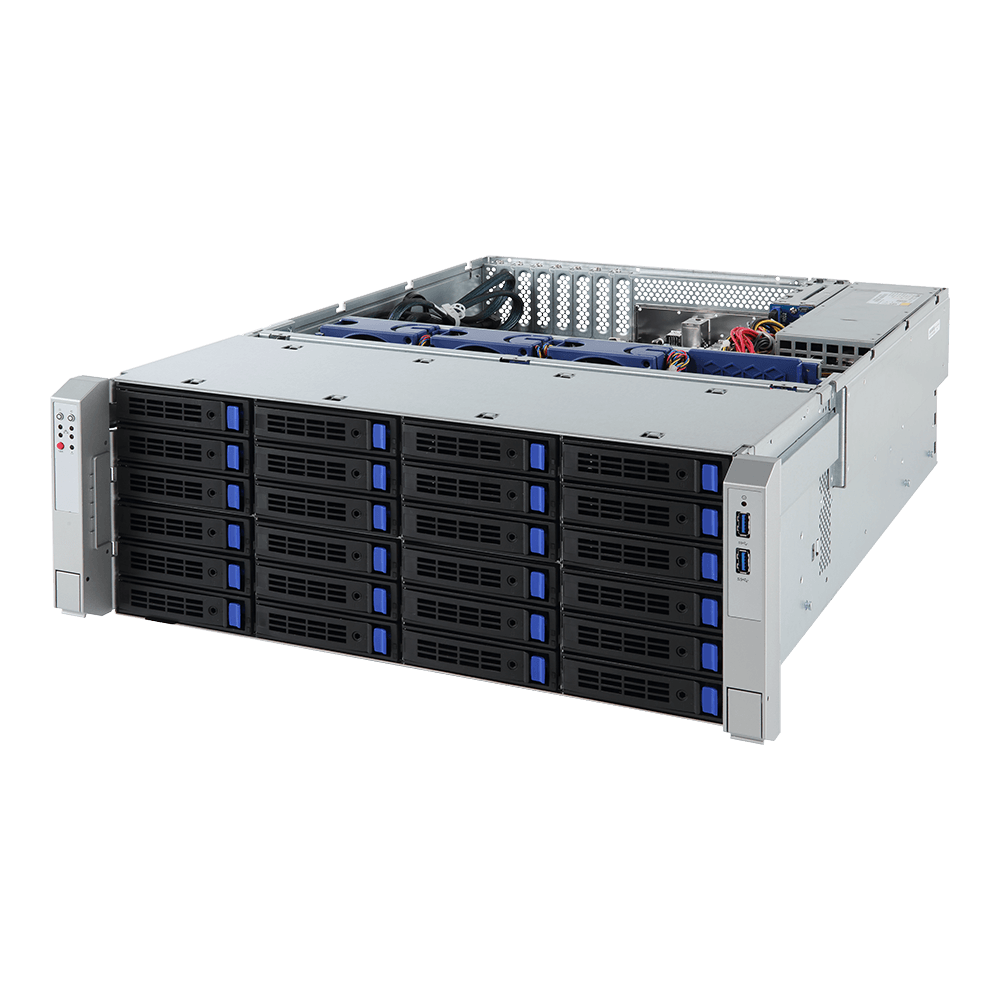

S451-3R0 (rev. 100)

製品種別 サーバ
CPUソケット数
CPU 　
　
筐体サイズ 4U
最大GPU数
電源仕様 リダンダント電源
用途/特長 　
製品説明

製品仕様

Dimensions (WxHxD, mm) 4U
482.6 x 177 x 625
Motherboard MD61-SC2
CPU 2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket 2 x LGA 3647
Socket P
CPU TDP up to 145W
Chipset Intel® C621 Express Chipset
Memory 16 x DIMM slots
DDR4 memory supported only
6-channel memory per processor architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz

Maximum verified DCPMM configuration:

* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x4 pcs

DCPMM installation locations:
DIMM_P0_( A1, D1)
DIMM_P1_( G1, J1)

NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative
LAN 2 x 10Gb/s SFP+ LAN ports (QLogic® QL41102)
2 x 1Gb/s LAN ports
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio -
Storage Front side: 24 x 3.5" or 2.5" SATA/SAS hot-swappable HDD/SSD bays
Rear side: 12 x 3.5" or 2.5" SATA/SAS hot-swappable HDD/SSD bays
Rear side booting device bay: 2 x 2.5" hot-swappable SSD bays*

NOTE:
* For rear side 2.5" bays support Solid State Drives only due to thermal consideration

2 x Broadcom SAS3x36R expanders
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
2 x SAS/SATA drives in rear side
SAS card is required to enable the drive bays

Suggested 12Gb/s SAS cards:
CRA4648
CSA4648
SATA 2 x 7-pin SATA III 6Gb/s with SATA DOM supported
SAS Depends on SAS add-on Card
RAID Depends on SAS add-on Card
Peripheral Drives -
Expansion Slots Slot_7 (PCIe_4): 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1
Slot_6 (PCIe_3): 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1
Slot_5 (PCIe_2): 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1
Slot_4 (PCIe_1): 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_0

1 x Mezzanine card slot:
- PCIe Gen3 x16 (x8+x8)
- From CPU_0
- Optional for OCP mezzanine card with low profile type
Internal I/O 2 x SATA 7-pin connectors
1 x TPM header
1 x VROC connector
Front I/O 2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x System status LED
4 x LAN activity LEDs
Rear I/O 2 x USB 3.0
1 x VGA
2 x SFP+
2 x RJ45
1 x MLAN
1 x ID button with LED
2 x LAN activity LEDs
Backplane I/O Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply 2 x 1200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A
System Management Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Hardware information
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Fan profiles
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (HTML5)
OS Compatibility For Skylake processors:

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 11.4 (x64) or later
SUSE Linux Enterprise Server 12.2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later

VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0

BigTera VitualStor Scaler

For Cascade Lake processors:

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 18.04 LTS (x64) or later

VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0

BigTera VitualStor Scaler
Weight 53 kg
System Fans 1 x 40x40x28mm (26,000rpm)
2 x 60x60x38mm (21,700rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 843 x 610 x 290 mm
Packaging Content 1 x S451-3R0
2 x CPU heatsinks
1 x Rail kit
2 x Non-Fabric CPU carrier
Part Numbers Barebone package: 6NS4513R0MR-00
Part Numbers:
- Motherboard: 9MD61SC2NR-00
- Rail kit: 25HB2-3A6103-I0R
- CPU heatsink: 25ST1-353105-T1R
- Back plane board_Front_24-port: 25FBZ-RS4240-I1R
- Back plane board_Rear_12-port: 25FBZ-RS2121-I1R
- Back plane board_Rear_2*2.5"-port: 25FBZ-RA1020-I1R
- 1200W power supply: 25EP0-212002-F3S
- 1600W power supply: 25EP0-216007-L0S (as an option)
