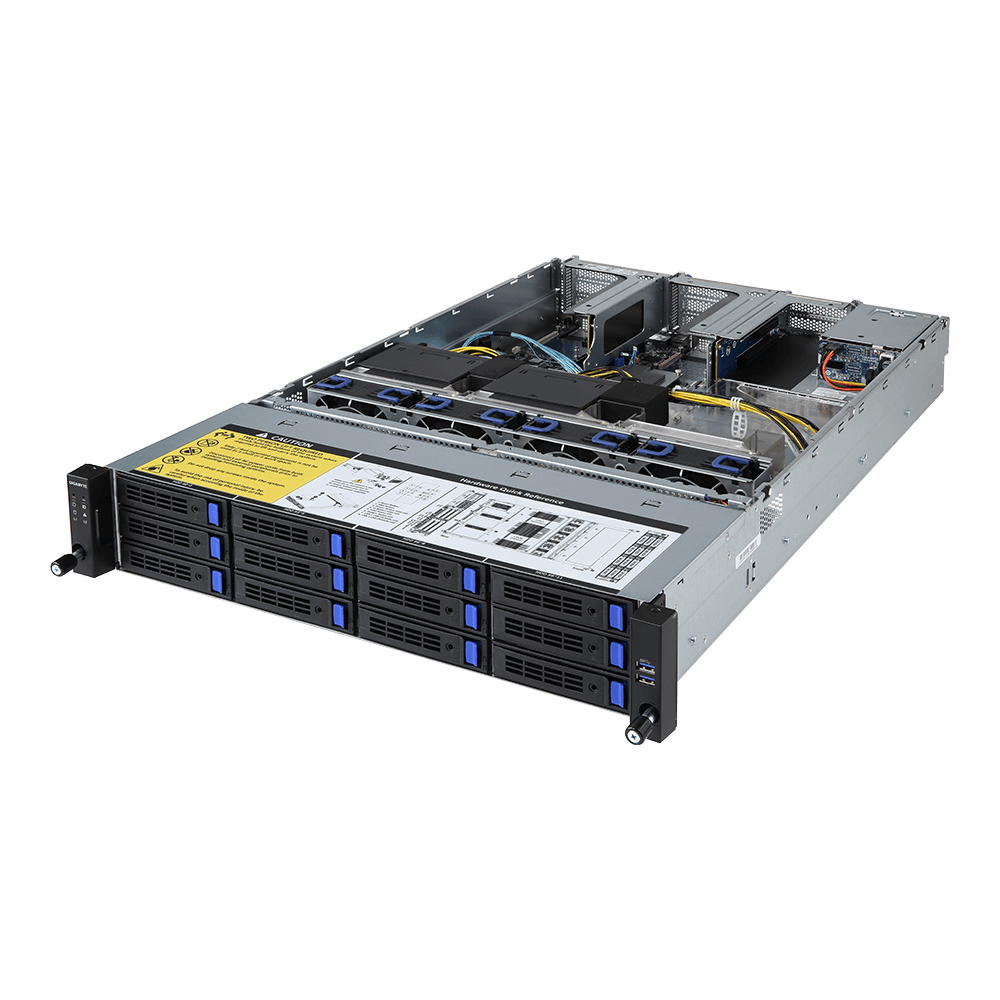

R281-3C2 (rev. 300)

製品種別 サーバ
CPUソケット数
CPU 　
　
筐体サイズ 2U
最大GPU数
電源仕様 リダンダント電源
用途/特長 　
製品説明

製品仕様

Dimensions (WxHxD, mm) 2U
438 x 87.5 x 730
Motherboard MR91-FS0
CPU 2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
CPU TDP up to 165W*

* If only 1 CPU is installed, some PCIe or memory functions might be unavailable
* To support a CPU TDP of up to 205W, power supply units must be upgraded to 1600W
Socket 2 x LGA 3647
Socket P
Chipset Intel® C621 Express Chipset
Memory 24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz

Maximum verified DCPMM configuration:

* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs

DCPMM installation locations:
DIMM_P0_( A1, B1, C1)
DIMM_P0_( D1, E1, F1)
DIMM_P1_( G1, H1, I1)
DIMM_P1_( J1, K1, L1)

NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative
LAN 2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio -
Storage Front side: 12 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
12 x SATA ports by default setting
SAS card is required for SAS devices support
SATA 2 x 7-pin SATA III 6Gb/s with SATA DOM supported
By using pin_8 or external cable for power function
SAS Supported via add-on SAS Card
RAID Intel® SATA RAID 0/1/10/5
Peripheral Drives -
Expansion Slots Riser Card CRS2131:
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length
- 1 x PCIe x8 slots (Gen3 x0 or x8), Full height full-length
- 1 x PCIe x8 slots (Gen3 x8), Full height half-length

Riser Card CRS2132:
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length
- 1 x PCIe x8 slots (Gen3 x0 or x8), Full height full-length
- 1 x PCIe x8 slots (Gen3 x8), Full height half-length

Riser Card CRS2124:
- 1 x PCIe x8 slots (Gen3 x0 or x8), Low profile half-length
- 1 x PCIe x16 slot (Gen3 x16 or x8), Low profile half-length

2 x OCP mezzanine slots
- PCIe Gen3 x16
- Type1, P1, P2, P3, P4, K2, K3
Internal I/O 2 x Power supply connectors
4 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O 2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O 2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O Front side_CBP20C3: 12 x SATA/SAS ports
Rear side_CBP2020: 2 x SATA/SAS ports
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
TPM 1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Power Supply 2 x 1200W redundant PSUs*
80 PLUS Platinum

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc input
+12V/ 97A
+12Vsb/ 3A

* Redundant function would be disabled if 2* GPU card are installed in system
* To support redundant function, change power supply to 2000W when CPU TDP >165W
System Management Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Hardware information
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Fan profiles
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (HTML5)
OS Compatibility For Skylake processors:

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 11.4 (x64) or later
SUSE Linux Enterprise Server 12.2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later

VMware ESXi 6.0 Update 3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0

For Cascade Lake processors:

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later

SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 18.04 LTS (x64) or later

VMware ESXi 6.0 Update 3 or later
VMware ESXi 6.5 Update 2 or later
VMware ESXi 6.7 Update 1 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0
Weight 20 kg
System Fans 4 x 80x80x38mm (16'300rpm), 2-ball
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions 982 x 588 x 268 mm
Packaging Content 1 x R281-3C2
2 x CPU heatsinks
1 x Rail kit
2 x Non-Fabric CPU carrier
Part Numbers Barebone package: 6NR2813C2MR-00
Part Numbers:
- Motherboard: 9MR91FS0NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-253100-F2R
- Back plane board_12-port: 9CBP20C3NR-00
- Back plane board_2-port: 9CBP2020NR-00
- Front panel board: 9CFP2001NR-00
- 1200W power supply: 25EP0-212002-F3S
- 1600W power supply: 25EP0-216007-L0S (as an option)
- RJ45 type COM cable: 25CR0-200400-Y4R (as an option)
- Riser card - CRS2131: 9CRS2131NR-00
- Riser card - CRS2132: 9CRS2132NR-00
- Riser card - CRS2124: 9CRS2124NR-00
