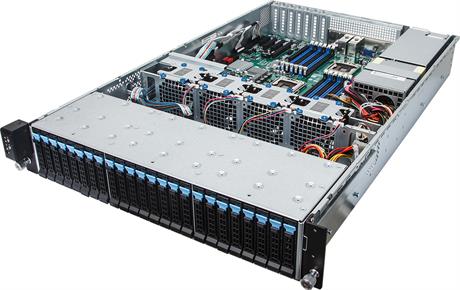

| Dimensions (WxHxD, mm) |
2U
430 x 87 x 712 |
| Motherboard |
GA-7PESLX |
| CPU |
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families |
| Socket |
2 x LGA 1356
2 x CPU heatsinks included |
| Chipset |
Intel® C602 |
| Memory |
12 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only |
| LAN |
2 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Storage |
24 x 2.5" hot-swappable HDD/SSD bays |
| SAS |
2 x Mini-SAS (for 8 x SAS 6Gb/s ports) |
| SATA |
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/5/10
LSI® SAS2008 RAID 0/1/1E/10 |
| Peripheral Drives |
- |
| Expansion Slots |
6 x Full-length low-profile slots
2 x PCIe x16 (Gen3 x16 bus) connectors
1 x PCIe x8 (Gen3 x4 bus) connector
1 x PCIe x8 (Gen2 x4 bus) connector
1 x PCIe x4 (Gen2 x1 bus) connector |
| Front I/O |
1 x Power button with LED
1 x System status LED
1 x ID button with LED
1 x Reset button
2 x LAN LEDs
1 x HDD status LED |
| Rear I/O |
4 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED |
| Internal I/O |
1 x 24-pin main power connector
2 x 8-pin 12V power connectors
4 x System fan headers
2 x CPU fan headers
1 x PMBus connector
1 x LSI® RAID select connector
1 x BIOS write protect jumper
1 x LSI® firmware readiness LED
2 x Mini-SAS connectors
1 x SATA SGPIO connector
4 x SATA II 3Gb/s ports
2 x SATA III 6Gb/s ports
2 x SATA port DOM support jumpers
1 x ME enable/disable jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x Force to Stop FRB3 Timer jumper
2 x USB 2.0 headers
1 x Front panel header
1 x Serial header |
| Backplane I/O |
N/A |
| TPM |
1 x TPM header |
| Power Supply |
2 x 750W redundant PSU
80 PLUS Gold
100~220V AC |
| System Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| OS Supported |
Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6.1 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Weight |
17 kg |
| System Fans |
4 x 80x80x38mm (9000rpm) |
| Operating Properties |
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 50°C
10-80% operating humidity at 30°C |
| Part Numbers |
Barebone: 6NR22PFLMS-00
Rail kit: 25HB2-073900-I0R |
